How do we diagnose it?

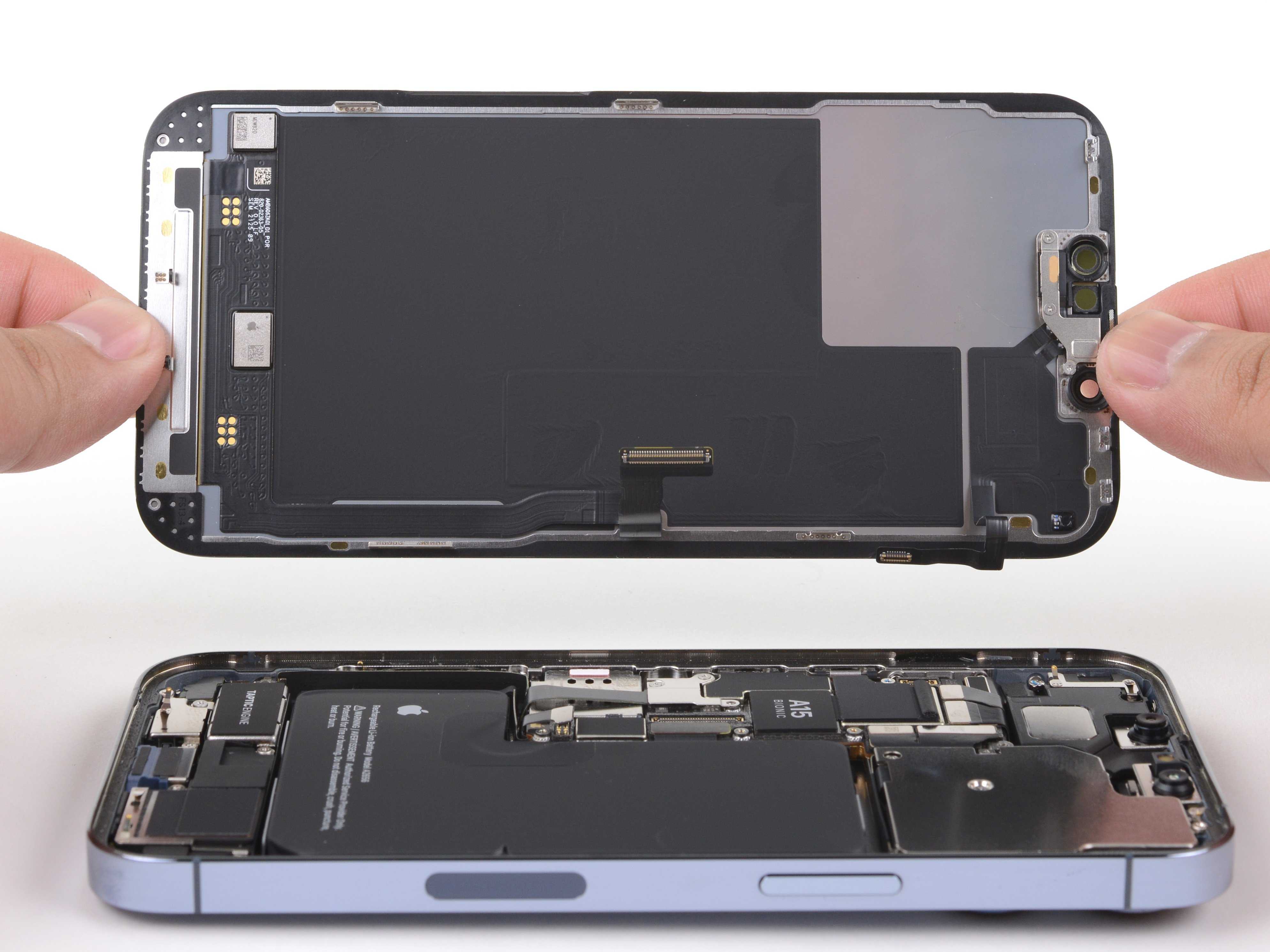

At first glance the iPhone seems like a no power issue. Since the iPhone shows nothing on the screen it could actually be just a display problem. One of the things that can cause an iPhone to lose it’s backlight could water damage, a cheap screen with exposed solder joints at the backlight flex, shorted backlight circuit which can be caused by using metal tools when the iPhone is under power.
At times the iPhone can have the backlight on, but show no image. Remember the backlight circuit is separate from the LCD and digitizer (touch). No image is most often caused by a tool or fingernail damage
We can differentiate a display problem from no power problem easily by connecting the phone to the computer which will tell us if the iPhone powers on or no. If the iPhone is recognized by iTunes for example, it’s on, but you may have a display or it needs an update. If the iPhone is not recognized, and we don’t see it pulling a healthy amp draw with an amp meter then we will have to diagnose further.
iPhone 5, 5c, 5s
A1428, A1429, A1442 iPhone 5 |
100 |
A1456, A1532 , A1507, A1516, A1526, A1529 iPhone 5c |
100 |
A1453, A1533, A1457, A1518, A1528, A1530 iPhone 5s |
100 |
iPhone 6, 6 Plus, 6s, 6s Plus
A1549, A1586, A1589 iPhone 6 |
100 |
A1522, A1524, A1593 iPhone 6 Plus |
100 |
A1633, A1688, A1691, A1700 iPhone 6s |
150 |
A1634, A1687, A1690, A1699 iPhone 6s Plus |
150 |
iPhone SE (1st Generation)
A1662, A1723, A1724 iPhone SE (1st Generation) |
100 |
iPhone 7, 7 Plus
A1660, A1779, A1780, A1778 iPhone 7 |
200 |
A1661, A1785, A1786, A1784 iPhone 7 Plus |
200 |
iPhone 8, 8 Plus
A1863, A1906, A1907, A1905 iPhone 8 |
200 |
A1864, A1898, A1899, A1897 iPhone 8 Plus |
200 |
iPhone X, XR, XS, XS Max
A1865, A1902, A1901 iPhone X |
300 |
A1984, A2105, A2106, A2108 iPhone XR |
300 |
A1920, A2097, A2098, A2100 iPhone XS |
300 |
A1921, A2101, A2102, A2103, A2104 iPhone XS Max |
300 |
iPhone 11
A2111 , A2221, A2223 iPhone 11 |
300 |
A2160, A2215, A2217 iPhone 11 Pro |
300 |
A2161, A2220, A2218 iPhone 11 Pro Max |
300 |
iPhone SE (2nd Generation)
A2275, A2296, A2298 iPhone SE (2nd Generation) |
300 |
iPhone 12, 12 mini, 12 Pro, 12 Pro Max
A2172, A2402, A2404, A2403 iPhone 12 |
300 |
A2176, A2398, A2400, A2399 iPhone 12 mini |
300 |
A2341, A2406, A2407, A2408 iPhone 12 Pro |
300 |
A2342, A2410, A2411, A2412 iPhone 12 Pro Max |
300 |
iPhone 13, 13 mini, 13 Pro, 13 Pro Max
A2482, A2631, A2634, A2635, A2633 iPhone 13 |
300 |
A2481, A2626, A2629, A2630, A2628 iPhone 13 mini |
300 |
A2483, A2636, A2639, A2640, A2638 iPhone 13 Pro |
300 |
A2484, A2641, A2644, A2645, A2643 iPhone 13 Pro Max |
300 |
iPhone SE (3rd Generation)
A2595, A2782, A2783, A2784, A2785 iPhone SE (3rd Generation) |
300 |
